Ostwind 3

Ostwind 3 is the third offshore project to connect the wind farms to the north-east of Rügen island to the grid (see also Ostwind 1 and Ostwind 2). In 2005, the Federal Maritime and Hydrographic Agency (BSH) designated the area called ‘Westlich Adlergrund’ as a particularly suitable area for the construction of wind turbines. It has a surface of 109.2 square kilometres and is located in the German Exclusive Economic Zone (EEZ) of the Baltic Sea, i.e. beyond the 12 nautical mile zone designated as coastal waters. It is located at about 42 kilometres from the closest coast of Rügen island, and some 100 kilometres from the transition point between the submarine and land cable in the Vierow port area near Lubmin.

The indicated wind farm area O-1.3 is located in the Westlich Adlergrund area, north of the operational wind farms Wikinger and Arkona that are part of the 50Hertz grid connection project Ostwind 1. The Windanker wind farm area has a size of 25 square kilometres and will be developed and operated by the Spanish company Iberdrola Renovables, together with its German subsidiary Windanker GmbH.


With the connection of Windanker wind farm area, a capacity of 300 megawatts (MW) will be supplied in the future. Only one grid connection system will be installed for Ostwind 3 (OST-1-4). According to calculations, this is enough electricity for around 260,000 households. Other than for previous 50Hertz grid connection projects, 50Hertz will now not only plan, construct and operate the onshore substation and the cable system, but also the offshore substation, a first for the TSO.

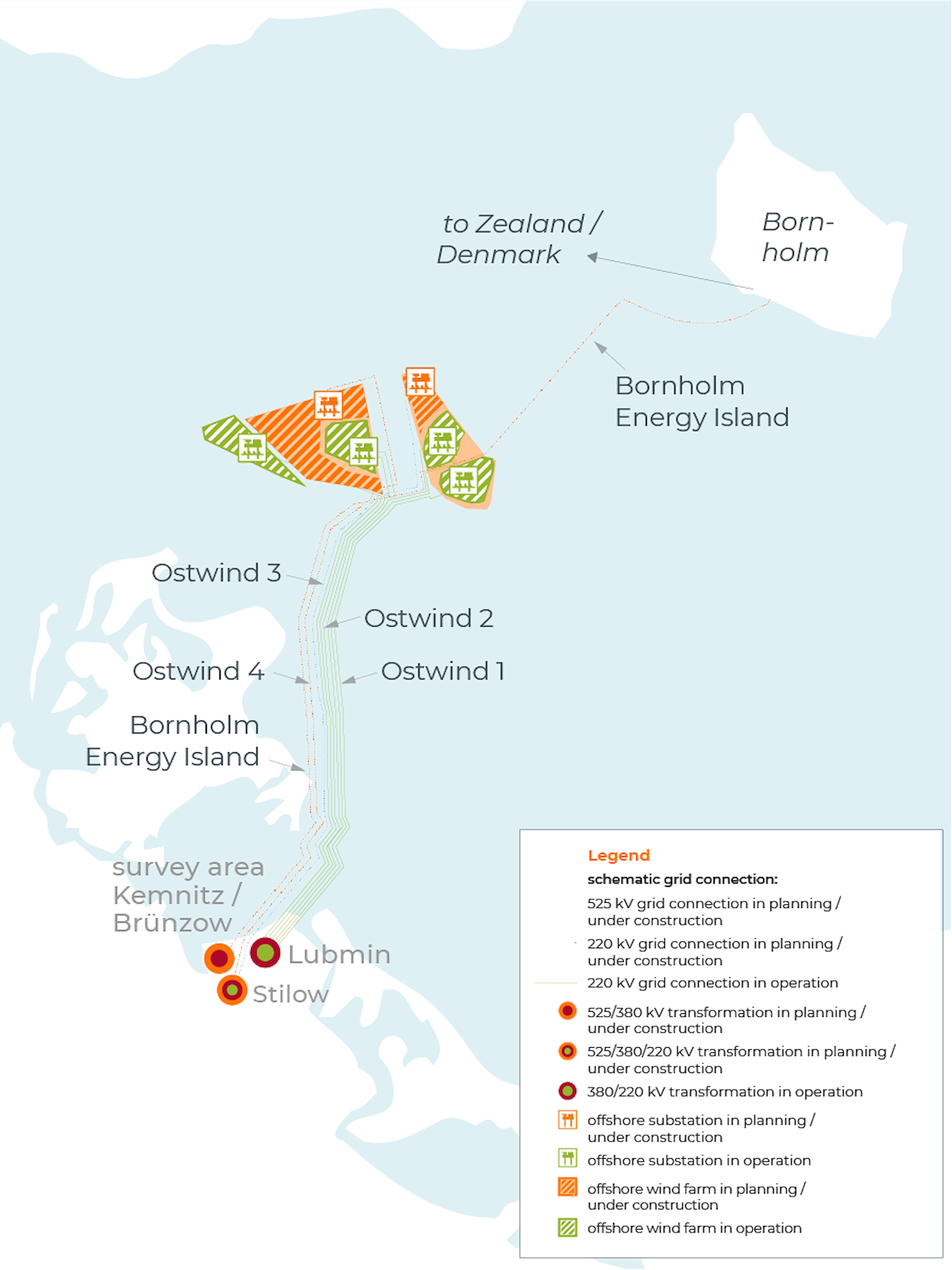

Overview of grid connection
Location of the Westlich Adlergrund area
Approximately 42 kilometres north-east of Rügen
Capacity/alternating voltage level:
300 megawatts (MW) / 220 kilovolts (kV)
Cable length off-/onshore
Approximately 100 kilometres / approximately four and a half kilometres
Onshore point of common coupling
Near Stilow
Operator of the cables and the offshore substation
50Hertz Transmission GmbH
Status of the permitting procedures
A total of three planning approval procedures were completed: These concern the cable sections (1) in the German Exclusive Economic Zone or AWZ (incl. offshore substation), (2) in the coastal waters and (3) on land (incl. substation and tap point). Planning approval decisions were made for all three sections.
Expected date of completion within the meaning of § 17d (2) sentence 3 of the German energy industry act (Energiewirtschaftsgetsetz, EnWG)
30/09/2026

Latest News

Line route

The line runs south from the offshore substation at the Windanker wind farm to the Vierow port area in the municipality of Brünzow, where the landing point is located. There, the line is connected to an underground cable of approximately four and a half kilometres up to the yet to be constructed Stilow substation. You can learn more about the 50Hertz offshore substation here.

Offshore route

In order to minimise the impact on the environment, it is important to keep the length of the cable as short as possible and, if possible, bundle it with existing cables. That is why 50Hertz will lay about two thirds of the submarine cable system in parallel with the lines of projects Ostwind 1 and 2. The 220-kV submarine cable transports the electricity generated in the wind farm from the Exclusive Economic Zone (EEZ) through the coastal waters and the Bay of Greifswald to the so-called landing point in the Vierow port area. The port area of Vierow is located in the municipality of Brünzow in the Vorpommern-Greifswald district of the state of Mecklenburg-Western Pomerania. The landing point is where the submarine cable reaches the shore.

Onshore route

From the landing point in the port area of Vierow, the electricity generated at sea is transported further via land cable to the onshore substation. The land cable of approximately four and a half kilometres in length is laid as an underground cable. The underground cable route should run as straight as possible but is nevertheless subject to a number of spatial planning criteria. Intersections with other lines, buildings, residential areas, streets and gas mains shall for instance be avoided as much as possible. Nature conservation areas and forests shall also be circumvented.

Onshore substation

50Hertz is planning to build a new substation near Stilow, where the current will be transformed from 220 kilovolts (kV) to 380 kV. In the substation, the electricity generated at sea is injected into the German extra high voltage transmission grid. As there is not enough space, the existing substation in the neighbouring municipality of Lubmin no longer offers the possibility to connect additional submarine cables. Additionally, technical grid aspects play an important role here: the connection of an additional system to this site, which already has two offshore grid connections, would pose a considerably larger risk of disturbances and system outages.

After thorough examination, a new substation will therefore be built for the Ostwind 3 grid connection. For the onshore grid connection, the survey area in the municipalities Lubmin/Brünzow/Wuhsterhusen and Kemnitz was specified in the Grid Development Plan 2030 (2019). Within this area, an extensive and careful examination of many different criteria was performed to decide on the final location. The site should, for instance, be located outside of nature conservation areas and drinking water protection zones insofar as possible. The distance to residential and settlement areas also needed to be taken into account. The traffic connection of the substation shall also be possible via suitable streets and rails. Moreover, the existing 50Hertz extra high-voltage grid, in this case a 380-kV overhead line, shall also be nearby, so that the substation can be connected to the 50Hertz grid. This way, the connection of additional lines was avoided.

The substation will cover an area of approx. 10.5 hectares. An expansion area is added for future expansion stages. In total, 16 hectares are available at the site. More information on the substation can be found here.

Permitting

The construction, expansion and conversion of electricity lines are infrastructural measures that affect many interested parties, like agriculture and nature conservation. That is why the legislator has clearly arranged the processes for the planning and approval, for example in the German Energy Industry Act (Energiewirtschaftsgesetz). The Ostwind 3 grid connection project was first confirmed in the draft area development plan 2020 (Flächenentwicklungsplan, FDP) according to the stipulations of the German offshore wind energy act (Windenergie-auf-See-Gesetz, WindSeeG) and in the grid development plan for electricity 2030 (GDP 2019-2030) as well as several times since then. Ostwind 3 is divided into three approval sections, which all went through the planning approval procedure. The planning approval procedure is a detailed permit review in which the building permit for the project is issued as well. Simply put, the planning approval procedure primarily deals with the “how” of the construction project (specification of the location, structures, technical implementation).

Permits for offshore route and offshore substation

For the section in the Exclusive Economic Zone (EEZ), the competent permitting authority, the Federal Maritime and Hydrographic Agency (BSH), made the planning approval decision. This concerns the cable route from the offshore substation and inside the German EEZ with a length of approximately 24 km in total as well as the construction of the offshore substation itself. The EEZ is the area beyond the coastal waters (12 nautical mile zone) up to a distance of 200 nautical miles.

The Ministry for Economics, Infrastructure, Tourism and Labour of Mecklenburg-Western Pomerania (WM M-V) made the planning approval decision for the cable route in coastal waters. This section covers the distance from the EEZ to the connecting element between the submarine and onshore cable near the port of Vierow and has a length of 77.5 km.

Approval of onshore route and substation

The point where the submarine cable reaches land is called the landing point. From the landing point, the electricity generated at sea is transported to the onshore substation by means of an underground cable running along the onshore route. The submarine cable of 220 kilovolt (kV) alternating current is connected to the German extra-high-voltage transmission grid by means of a substation. The necessary transformation of the voltage level from 220 to 380 kV takes place in this substation.

Because the submarine cable cannot be connected at the existing Lubmin substation due to lack of space and for grid-technical reasons, 50Hertz must build a new substation for this purpose. In order to connect it to the existing overhead line, a so-called double tap point is necessary that forms the connection between the existing overhead line grid and the substation. The tap point is installed as an overhead line.

The planning approval decision for the 4.5-km onshore route as well as the 10.5-hectare substation in the municipality of Brünzow, including the double tap point, was made by the Ministry for Economics, Infrastructure, Tourism and Labour of Mecklenburg-Western Pomerania.

Public participation

During the permit procedure, the public was formally involved in accordance with the legal requirements. 50Hertz supported this with informal public participation, also known as citizen dialogue. Citizen dialogue builds on 50Hertz's own experiences, not on legal stipulations. This difference is important as the citizen dialogue ends where the formal public participation laid down by law begins (see also Transparency and public participation).

Construction

The construction of Ostwind 3 starts with the approval of the off- and onshore route as well as the on- and offshore substations. Preliminary construction measures will take place first.

Preliminary measures at sea

Along the offshore route, ships and convoys will repeatedly be active on 50Hertz’s behalf to prepare the route on the seabed. For this purpose, several thousands of rocks will be placed a few metres to the side of the route. Afterwards, a tugboat will pull a grapnel across the seabed along the planned route. The grapnel run removes such things as oil sails, chains and nets from the seabed. During the so-called pre-lay run, the actual cable laying is tested. For the transition from sea to land, the so-called landing point, horizontal directional drilling (HDD) is carried out to pass under the beach, minimising the impact on the landscape. A cable conduit is then pulled into the borehole which will later accommodate the cable.

Offshore cable laying

50Hertz is responsible for laying of the Ostwind 3 submarine cable in the seabed and is legally obliged to do so. Especially the water depth and the composition of the soil determine which laying technique is used. The bottom of the Baltic Sea has glacial characteristics and its composition varies from region to region. It consists of soft materials such as silt, sand and peat, but also of hard materials such as clay, marl and rocky soils. In case of soft soil conditions, the submarine cable is flushed or ploughed into the seabed. These methods are particularly considerate of nature and environment. If the seabed is extremely hard, rocky or very peaty, other laying tools are used, such as cutters or excavators. After laying, the cable is covered with seabed material. A cable system of around 100 km cannot be laid as a single piece, but consists of several cable sections. The individual sections are connected to each other with so-called joints (connectors).

Preliminary onshore construction measures

To prepare the onshore construction sites, various, publicly visible works will be carried out. Environmental protection measures are implemented, such as installing amphibian or reptile fences, putting up tree protection or removing woody plants outside of the bird breeding season. Furthermore, archaeological surveys are carried out and, if necessary, explosive ordnance is cleared. Furthermore, storage areas for construction materials and the construction sites themselves are set up.

Onshore cable laying

In the area of the landing point in Vierow, the cable route will continue another four and a half kilometres over land, up to the yet to be constructed Stilow substation in the municipality of Brünzow. When railway lines, streets, water bodies or biotopes are crossed, 50Hertz passes underneath them using closed construction wherever possible. For this purpose, horizontal directional drilling (HDD) and microtunnels are used. Just like for submarine cables, the length of the onshore cables is limited. Underground cables cannot be produced as a single piece. The route is therefore divided into several cable sections. All sections are connected by means of joints.

Onshore cable route for three systems

Along the onshore route, cable conduits for the Ostwind 4 and Bornholm Energy Island systems are installed together with the conduits for the Ostwind 3 cable system. Combined laying has the following benefits: simultaneous construction of three cable conduit systems takes around nine months and makes it unnecessary to repeat the work over the course of several years. As the construction of the cable conduits takes place in one go, the surface can still be used for agriculture after the work has ended (with the exception of the cable pits for later cable pulling).
